Rules and derivations

A study build can do three things with logic: flag implausible data (edit checks), decide what gets collected (skip logic and dependent options), and compute values instead of collecting them (derivations). All three are authored the same way, in the Conditions & methods panel of the study builder, as small JSONata expressions stored inside the ODM build. This page is the authoring guide; what these rules look like during data entry is covered in Data capture.

Who does this: anyone with the study.manage permission on the study (demo-admin or demo-dm in the seeded demo). Follow along by opening the demo study’s latest build and clicking Edit build.

Three jobs, one machinery

You want to… You author a… It becomes, in ODM
Flag a suspect value and raise a query Condition, left unwired A ConditionDef the server evaluates on every save
Hide a field or section while something is true Condition, wired to the field A CollectionExceptionConditionOID on the ItemRef or ItemGroupRef
Withdraw one option from a choice list Condition, wired to the option The same attribute on a CodeListItem (vendor extension)
Compute a value from other answers Method, assigned to a field A MethodDef referenced by the item’s MethodOID

The role follows from the wiring, and the builder shows it as a badge on each rule: an unwired condition is labeled edit check, a wired one skip logic with its reference count, and every method derivation. Wiring a condition to a field changes what it does, not just where it appears: skip logic gates collection and never raises queries, while an edit check flags data and never hides anything.

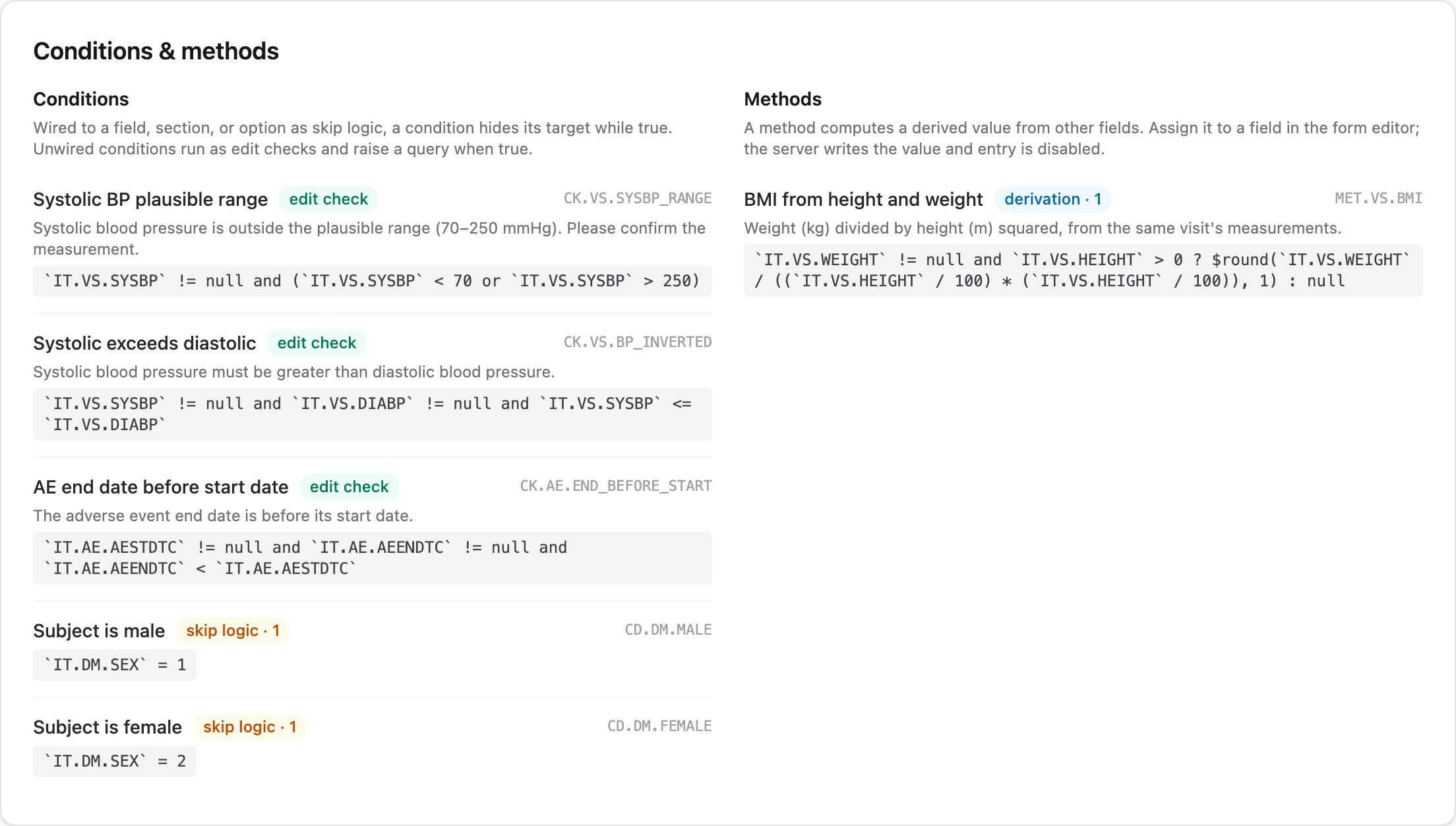

The Conditions & methods panel on the builder page, listing the demo study's edit checks, skip conditions, and BMI derivation with role badges

JSONata in ten minutes

JSONata expressions read item values by their OIDs in backticks and combine them with ordinary operators. Everything you need for most studies fits in a few patterns, all taken from the demo study:

A range check (CK.VS.SYSBP_RANGE). True when the value is implausible; the description becomes the query text.

`IT.VS.SYSBP` != null and (`IT.VS.SYSBP` < 70 or `IT.VS.SYSBP` > 250)

A cross-field check (CK.VS.BP_INVERTED). Two fields that must agree:

`IT.VS.SYSBP` != null and `IT.VS.DIABP` != null and `IT.VS.SYSBP` <= `IT.VS.DIABP`

A date-ordering check (CK.AE.END_BEFORE_START). ISO dates compare correctly as strings:

`IT.AE.AESTDTC` != null and `IT.AE.AEENDTC` != null and `IT.AE.AEENDTC` < `IT.AE.AESTDTC`

A skip condition (CD.DM.MALE). True when the field should not be collected. The demo study skips the pregnancy-test item while sex is recorded male (coded value 1):

`IT.DM.SEX` = 1

A derivation (MET.VS.BMI). Returns the computed value, or null when inputs are missing (the field stays empty rather than erroring):

`IT.VS.WEIGHT` != null and `IT.VS.HEIGHT` > 0
  ? $round(`IT.VS.WEIGHT` / ((`IT.VS.HEIGHT` / 100) * (`IT.VS.HEIGHT` / 100)), 1)
  : null

Three habits keep rules trustworthy. Guard against nulls: an untouched form has every value null, and a check that fires on empty forms buries sites in queries. Lean on the item’s data type: values are evaluated as their ODM type, so integers compare numerically and dates as ISO strings. And keep expressions pure: they read the form’s values and return a result; they cannot write, fetch, or reach outside the form.

Walkthrough: author an edit check

As demo-admin, open the demo study, open the latest build, and click Edit build. Scroll to Conditions & methods.

  1. Click + Condition. A new rule appears with a generated OID.
  2. Name it (say, “Pulse plausible range”) and write the description sites will read when it fires: this text is the query message.
  3. Type the expression. The panel checks syntax as you type; a typo shows Expression does not parse with the parser’s reason, immediately and before anything is saved:

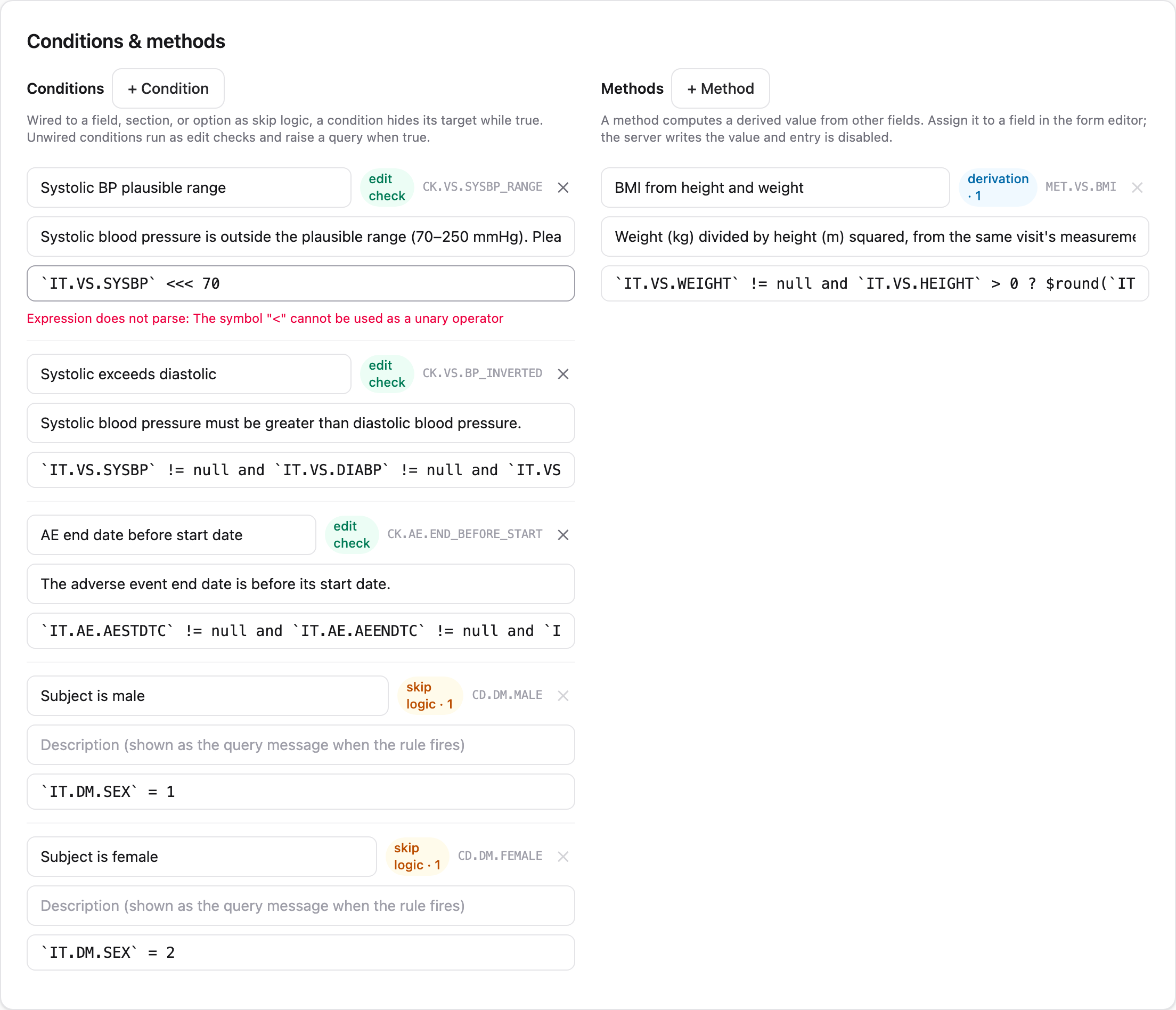

Editing a condition expression in the builder, with the live syntax checker reporting that the expression does not parse

  1. Leave it unwired: an unreferenced condition runs as an edit check.
  2. Click Save as new build. The draft is validated whole and written as the next immutable build version, through the same import path as an ODM file.

Nothing you type is persisted until that save, so experimenting is free. Existing forms keep the build they were captured under; moving them to the new build is an explicit amendment migration.

Walkthrough: skip logic and dependent options

Skip logic is a condition plus a reference. In the demo study, the condition CD.DM.MALE (true while sex is male) exists in the rules panel, and the pregnancy-test item’s editor wires it as the item’s collection exception. To do the same for any field: author the condition, then open the item in the form editor and select it under the skip setting.

Two things follow from the wiring:

  • The field disappears during entry while the condition is true, and returns when it goes false. A section whose every field is skipped hides entirely.
  • A value that was already saved is never silently deleted when its field becomes skipped; it is retained, badged not collected, and queried until the site resolves it. The entry-side behavior, including the retained-value workflow, is described in Data capture.

The same mechanism, referenced from a codelist option instead of a field, withdraws that one option while the condition is true: the demo study removes “Not performed” from the pregnancy-test result once sex is recorded female. In the export this uses the edc: vendor-extension attribute, so consumers that only speak plain ODM simply see the full option list.

Walkthrough: a derived value

Methods live in the right column of the same panel. The demo study’s MET.VS.BMI computes BMI from height and weight:

  1. Click + Method, name it, and write the expression.
  2. Open the target item in the form editor and assign the method. The item becomes computed: entry is disabled everywhere, including lab import and RTSM intake.
  3. Save as a new build.

At runtime the server evaluates the method after every accepted write and stores the result through the normal audited path, as item_value.derived, permanently distinguishable from entered data. Sites see a live preview with a computed badge while they type the inputs, but the stored value is always the server’s own calculation. A derivation may read other derived items; a circular chain is rejected when the build is validated, not discovered at runtime.

How rules travel

Conditions and methods are part of the build, so they export and import with it. In the ODM XML they are ordinary ConditionDef and MethodDef elements with JSONata formal expressions:

<ConditionDef OID="CK.VS.SYSBP_RANGE" Name="Systolic BP plausible range">
  <Description>
    <TranslatedText xml:lang="en" Type="text/plain">Systolic blood pressure
    outside plausible range (70-250 mmHg)</TranslatedText>
  </Description>
  <FormalExpression Context="jsonata">...</FormalExpression>
</ConditionDef>

That means rules can be authored in the panel, in a file, by your protocol tooling, or by an LLM, and land in the same versioned build either way. Round-tripping is a tested property; option-level skip references use the edc: namespace and are ignored gracefully by other ODM consumers.

Pitfalls

  • Check messages are visible to everyone who sees the form. Edit checks may reference blinded items, but the description text is shown to blinded roles too; never word a message so it reveals the value. The importer warns when a check references a blinded item.
  • A wired condition never raises queries. If you want both behaviors (skip a field and query an inconsistency), author two conditions.
  • Item definitions are shared. Assigning a method or skip condition to an item affects every form that references that item.
  • Rules version with the build. Tightening a check mid-study is an amendment; when migrated forms re-run the new check, expect new system queries where it fires. The amendments page shows how to preview that before executing.
