Study builds

A study build is a versioned, immutable snapshot of your study definition (events, forms, item groups, items, codelists, and edit checks), shaped as CDISC ODM v2.0. Everything else in edc-core renders from it: CRFs, the subject matrix, edit-check evaluation, and the analytics dataset layout.

Three ways to build, one API

Import an ODM file. Open a study and click Import ODM (or POST the document to /studies/:id/study-builds). Both the XML and JSON serializations of ODM v2.0 are accepted and validated. The repository ships a complete CDASH-aligned example in examples/demo-study.xml.

Legacy ODM 1.3.x metadata imports through a built-in upconversion shim: FormDefs become ItemGroupDef Type="Form", GlobalVariables become study attributes, and the protocol’s event ordering is preserved. Constructs the v2.0 build model doesn’t carry (measurement units, RangeChecks, archive layouts, embedded clinical data) are dropped with an explicit warning for each. Review the import warnings before using a converted build.

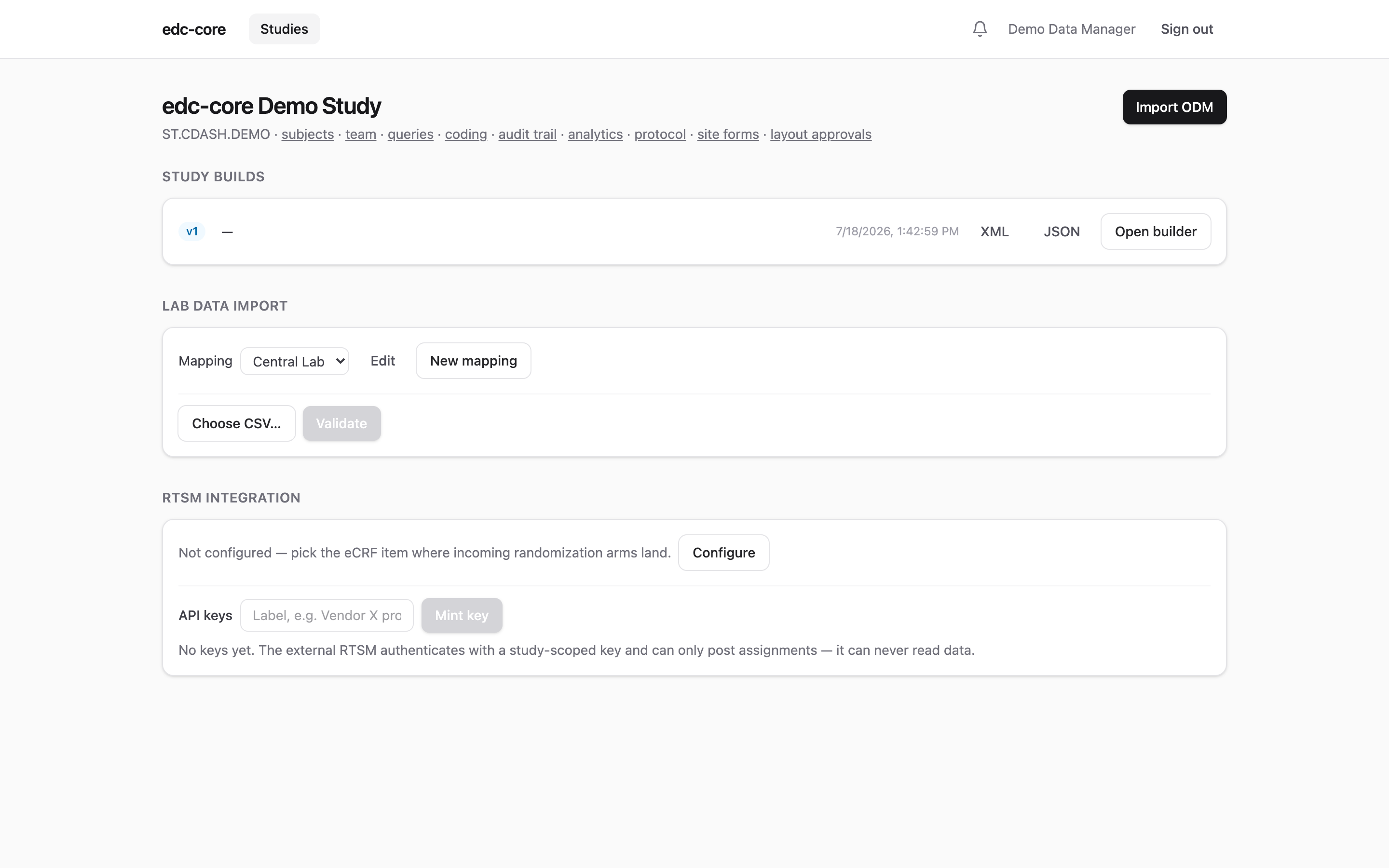

The study page lists every build; each exports back to ODM XML or JSON.

Use the visual builder. Every build can be opened in the study builder: a tree of events and forms with a live, interactive preview of each CRF exactly as data entry will render it.

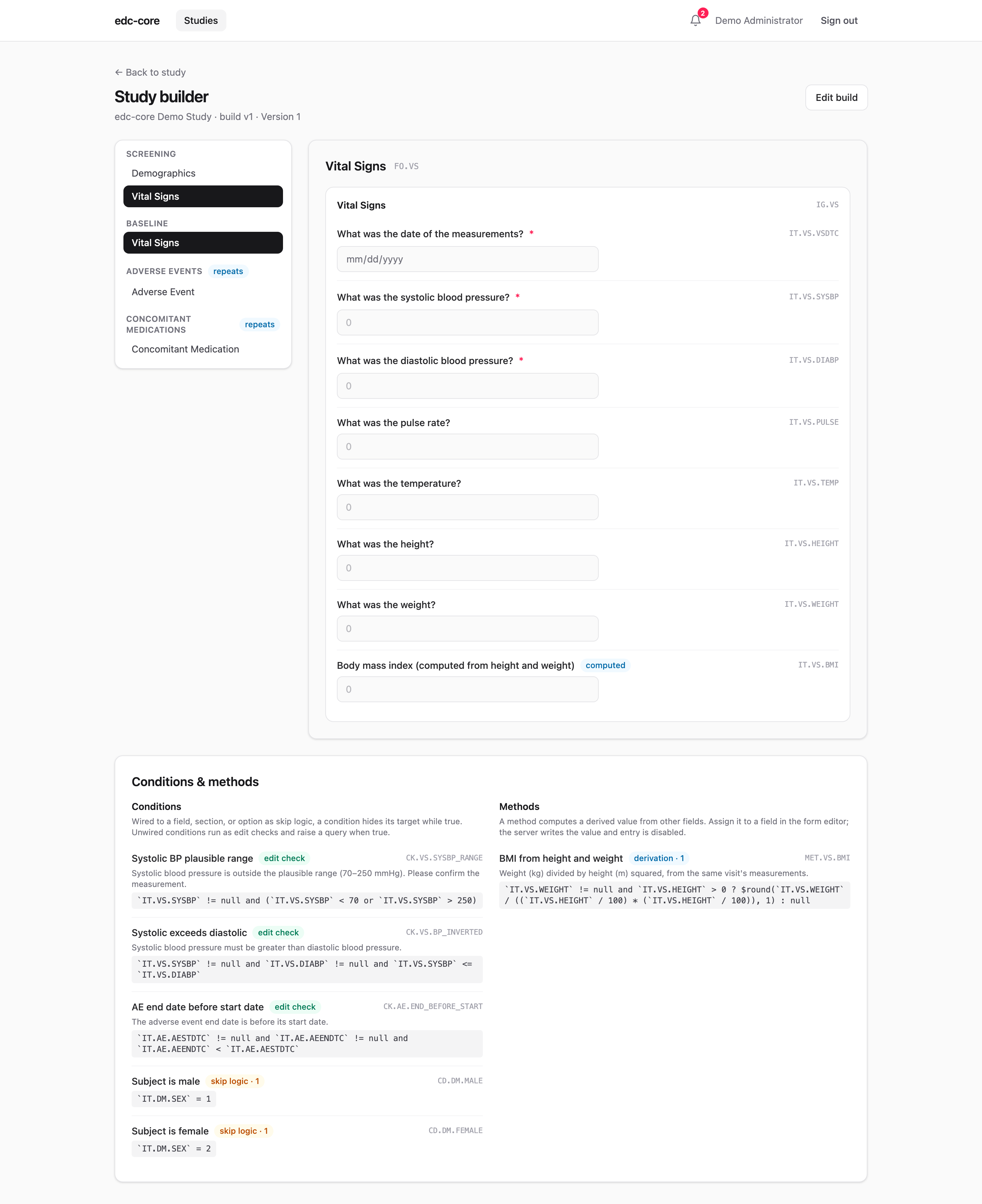

Study builder with event/form tree and live form preview

With the study.manage permission, Edit build switches the builder into a point-and-click editor: rename forms and sections, add or delete events, forms, sections, and items, reorder items, change questions, data types, and lengths, assign codelists, toggle required/repeating flags, and wire skip conditions and derivation methods to fields and sections. A rules panel below the form editor manages the conditions and methods themselves; JSONata expressions are syntax-checked as you type. Nothing is persisted while you work. Save as new build validates the draft and writes it through the same import path as a file, creating the next immutable version. A study with no builds yet offers a start from scratch shortcut that creates a minimal first build to edit. (Item definitions are shared: editing a question changes every form that references that item.)

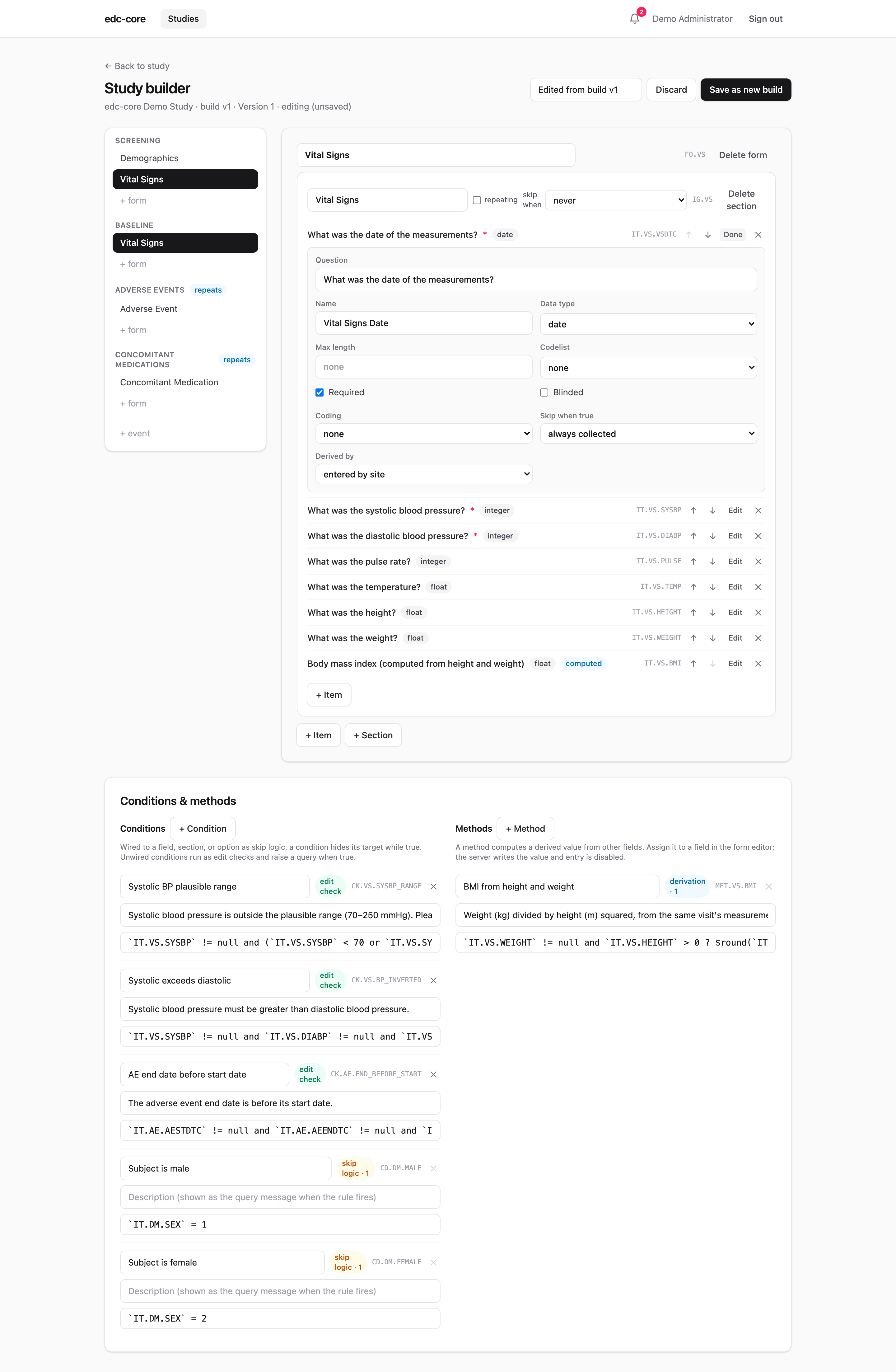

Study builder in edit mode with an expanded item editor

Script it. Because file-driven and point-and-click builds hit the same versioned-metadata API, builds are automatable: generate ODM from your protocol tooling, from code, or with an LLM, and import the result. There is no second, weaker representation to keep in sync.

Versioning

Builds are numbered v1, v2, … and never modified in place (append-only, enforced by a database trigger). Each form instance records the build version it was captured under, so mid-study amendments don’t disturb already-collected data. Every build can be exported back out as ODM XML or JSON at any time; round-tripping is a tested property.

Mid-study amendments

When a protocol amendment lands mid-study, import (or build) the new version, then use the Amendments panel on the study page:

  1. Diff: compare any two builds for items added/removed/changed (data type, codelist, length, mandatory), edit checks, events, forms, and codelists.
  2. Analyze impact: how many in-flight forms would migrate (by status and by current build), values orphaned by removed items, values that will not cast to a changed data type, and which checks will re-run.
  3. Execute: each eligible form is re-pointed to the new build and its edit checks re-run, one transaction per form: newly firing checks open system queries, checks that no longer exist auto-close theirs, and every re-point is audited (form.migrated).

Two rules are deliberate:

  • Signed and locked forms never migrate. Their signature hashes bind to the build they were signed under; re-signing after an amendment is an explicit, separate act.
  • Orphaned values are never deleted. A value captured against an item the amendment removed stays in the append-only history and the audit trail; it just stops rendering and stops appearing in analytics snapshots.

Executing again after a partial run is safe: already-migrated forms are no longer eligible.

Edit checks

Edit checks are ODM ConditionDefs with JSONata formal expressions: pure, side-effect-free expressions over the form’s item values. The demo study includes three:

  • systolic blood pressure outside a plausible range (70–250 mmHg)
  • diastolic ≥ systolic (inverted readings)
  • adverse event end date before start date

A failing check warns instantly during entry and, on save, raises a system query attached to the item. When the data is corrected, the query closes automatically. See Data capture.

Dynamic fields

Beyond checks that flag data, a build can make the form itself respond to the data (ADR-0014). All three constructs reuse the same JSONata ConditionDef/MethodDef machinery as edit checks, so they travel inside the ODM build like everything else.

Skip logic. A CollectionExceptionConditionOID on an ItemRef or ItemGroupRef marks the field (or the whole section, including nested sections) as not collected while the referenced condition is true. This is standard ODM. The demo study skips its pregnancy-test item while the subject’s sex is recorded male.

Dependent options. The same attribute on a CodeListItem (as the edc:CollectionExceptionConditionOID vendor extension) withdraws one option from the choice list while its condition is true. The demo study withdraws “Not performed” from the pregnancy-test result once the subject is recorded female. Consumers that only speak plain ODM ignore the attribute and see the full option list, so exports stay portable.

Derived values. An ItemRef with a MethodOID is computed, not entered: the server evaluates the method’s JSONata expression after every accepted write and stores the result through the normal audited path (as item_value.derived, permanently distinguishable from entered data). The demo study computes BMI from height and weight. A derivation may read other derived items; circular chains are rejected at validation time.

Conditions and methods referenced this way are collection logic, never edit checks: they gate what is collected instead of raising queries. All of it can be authored in the builder’s rules panel and item editors, or imported inside an ODM file; both land in the same build. What happens at the point of entry — fields appearing and disappearing, retained values that need clearing, read-only computed fields — is covered in Data capture.
