RTSM integration

edc-core does not randomize subjects: randomization and trial supply management (RTSM/IRT) is deliberately an external system. What edc-core provides is the receiving end: the RTSM posts each subject’s treatment-arm assignment to a study-scoped endpoint, and the arm lands on an ordinary eCRF item through the same audited write path as typed data. That one design decision (the same one lab import makes) means the audit trail, edit checks, blinding, signatures, casebooks, and the analytics lake all handle the arm correctly without special cases. The full rationale is in ADR-0010.

Setting up

Both steps live in the study page’s RTSM integration panel and require the study.manage permission.

1. Point the intake at an item. The configuration names the event, form, item group, and item OID where the arm lands, typically a dedicated randomization form with a text item for the arm. OIDs are validated against the latest study build when you save, and every change is audited with the full before/after. For a blinded trial, mark the arm item edc:Blinded="Yes" in the build: masking then applies everywhere by construction (see the blinding guide).

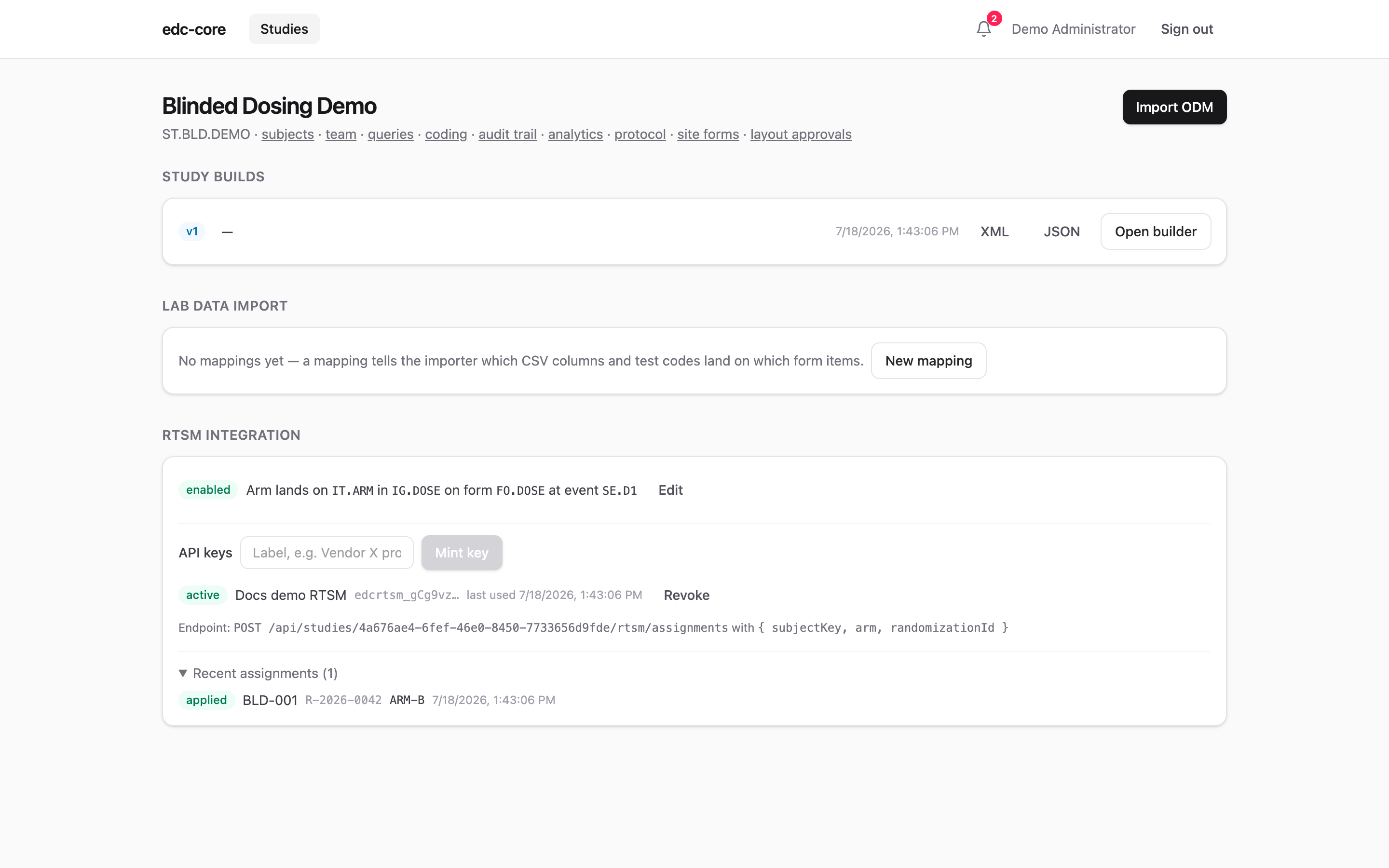

The RTSM integration panel: intake configuration pointing at the arm item, API-key management, and the transfer log with an applied assignment

2. Mint an API key. The RTSM authenticates with a study-scoped bearer token (edcrtsm_…). The raw token is shown exactly once at mint (edc-core stores only a hash) and can be revoked at any time. Keys are bound to a per-study service account that holds the rtsm_agent role; the key can reach exactly one route (the assignment POST) and can never read data, so the service account’s data.unblind grant is write-only in practice.

Posting an assignment

curl -X POST https://your-edc/api/studies/<studyId>/rtsm/assignments \
  -H "Authorization: Bearer edcrtsm_..." \
  -H "Content-Type: application/json" \
  -d '{
    "subjectKey": "S-101",
    "arm": "ARM-B",
    "randomizationId": "R-2026-0042",
    "assignedAt": "2026-07-11T09:30:00Z",
    "strata": { "region": "US" },
    "source": "vendor-rtsm"
  }'

subjectKey, arm, and randomizationId are required. randomizationId is the RTSM’s own transaction identifier, recorded for reconciliation. strata is stored opaquely in v1 (masked together with the arm); it is not written to items.

Outcomes map to HTTP statuses the RTSM can branch on:

Status Outcome Meaning
201 applied Arm written; form auto-created and started if needed
200 duplicate Identical assignment already recorded; replays are safe
409 conflict A different value is already recorded and nothing was written; resolve in the EDC
422 rejected Not applied: unknown or withdrawn/screen-failed subject, intake disabled/unconfigured, or an invalid arm value

Assignments never overwrite, and no response ever echoes the arm. Unknown subjects are rejected rather than auto-enrolled (enrollment is a site act), and the rejected event (below) is the discrepancy signal for reconciliation. Withdrawn and screen-failed subjects are rejected too: a subject who is out of the study must not silently accept an assignment, and reinstatement is the correction path if the disposition is wrong.

The transfer record

Every POST, including rejects, appends a row to an immutable events log: the payload as received, the outcome, the reason, and a link to the written value. The panel shows recent events; for viewers without a study-wide data.unblind grant the arm and strata are masked. This log is the transfer documentation and reconciliation basis ICH E6(R3) §4.2.5 expects for data moving between computerised systems, and it deliberately stays out of the analytics lake.

Limits

  • One assignment item per study, on repeat key 1; studies randomizing inside repeating events are not supported.
  • No outbound sync: edc-core does not push enrollments to the RTSM.
  • No emergency unblinding workflow; that stays in the RTSM.
