Add text to the end of each swimlane bar — geom_swimlane_label • ggswimlane

A text alternative to geom_swimlane_status(), annotating each lane just past the end of its bar. Subjects with NA in label_var are skipped.

Usage

geom_swimlane_label(
  id_var,
  duration_var,
  label_var,
  size = 3,
  hjust = -0.15,
  colour = "grey30",
  ...
)

Arguments

id_var: Column with the subject identifier, mapped to the y-axis.
duration_var: Numeric column with the bar length, mapped to the x-axis.
label_var: Column with the annotation text.
size: Text size.
hjust: Horizontal justification; the small negative default nudges labels just past the bar end.
colour: Text color.
...: Other arguments passed to ggplot2::geom_text().

Value

A list containing a ggplot2 layer.

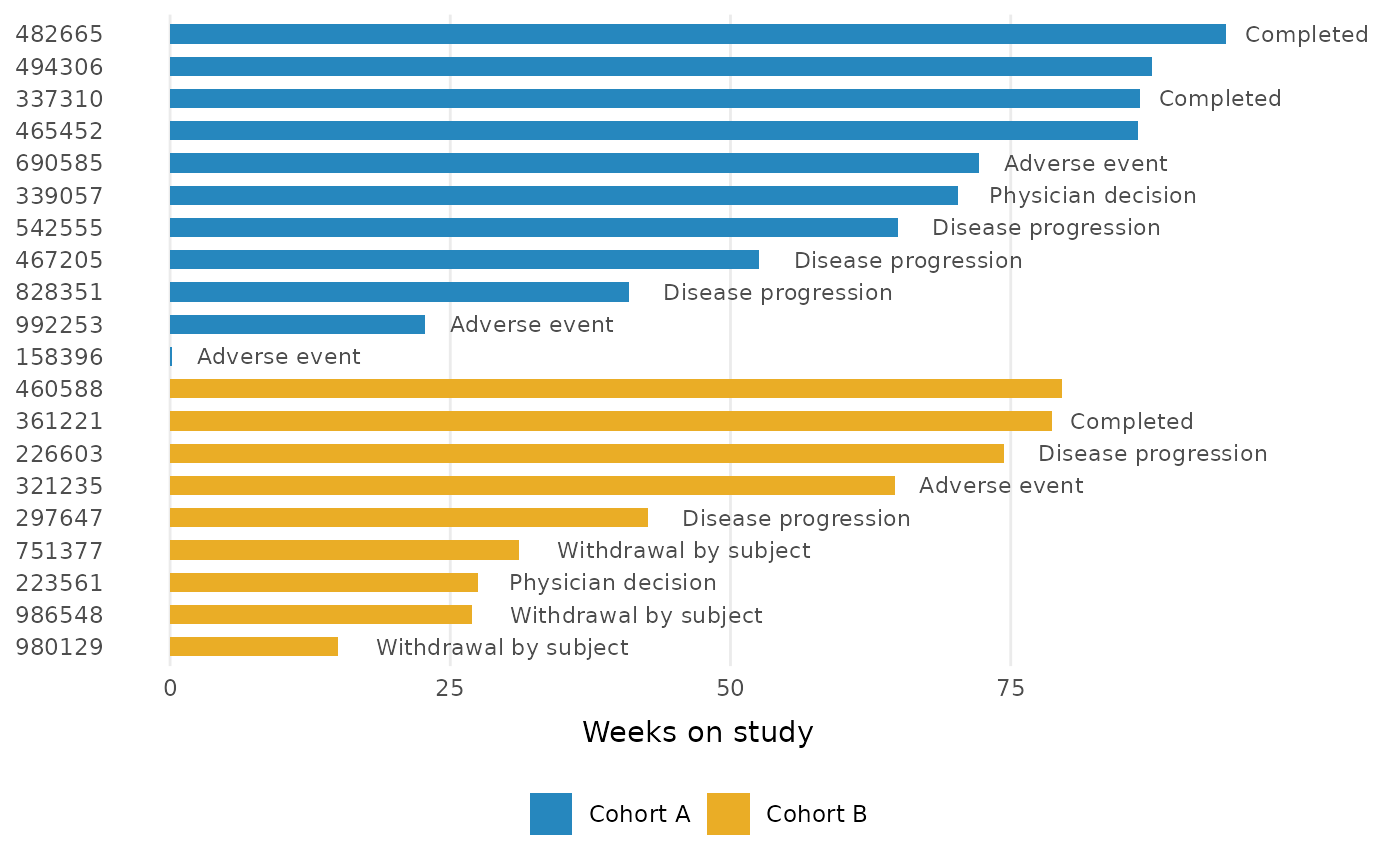

Examples

library(ggplot2)

patient_disposition |>
  order_swimlane(subject, weeks_on_study, cohort) |>
  ggplot() +
  geom_swimlane(subject, weeks_on_study, cohort) +
  geom_swimlane_label(subject, weeks_on_study, reason_off_study) +
  labs(x = "Weeks on study") +
  theme_swimlane(extra_margin_r = 40)
