Mark end-of-lane status with shaped points — geom_swimlane

Draws a shaped point at the end of each lane indicating the subject's status (e.g. reason off study), with a legend generated automatically from the shape mapping. Subjects still on study (NA in status_var, or the value of ongoing) are drawn as a rightward arrow with its own legend entry.

Usage

geom_swimlane_status(
  id_var,
  duration_var,
  status_var,
  ongoing = "On study",
  arrow = TRUE,
  size = 2.8,
  colour = "grey20",
  fill = colour,
  stroke = 0.75,
  halo = "white",
  ...
)

Arguments

id_var: Column with the subject identifier, mapped to the y-axis.
duration_var: Numeric column with the lane length, mapped to the x-axis.
status_var: Column with the status label. NA values are treated as ongoing.
ongoing: Legend label for ongoing subjects; also recognized as a value of status_var.
arrow: If TRUE (default), ongoing subjects get a rightward arrow with a separate legend entry. If FALSE, the ongoing label is treated as a regular status level in the shape legend.
size: Point size; the ongoing arrow is scaled to match.
colour: Point color, used for both the outline and (by default) the fill of the glyph, and for the ongoing arrow.
fill: Fill color for the solid glyphs (shapes 21-25). Defaults to colour.
stroke: Outline width of the glyph.
halo: Color of the ring drawn beneath each status glyph, separating it from the bar fill. Use NA to disable (e.g. on dark backgrounds).
...: Other arguments passed to the ggplot2::geom_point() status layer.

Value

A list of ggplot2 layers (and, when arrow = TRUE, a scale that creates the arrow's legend entry).

Examples

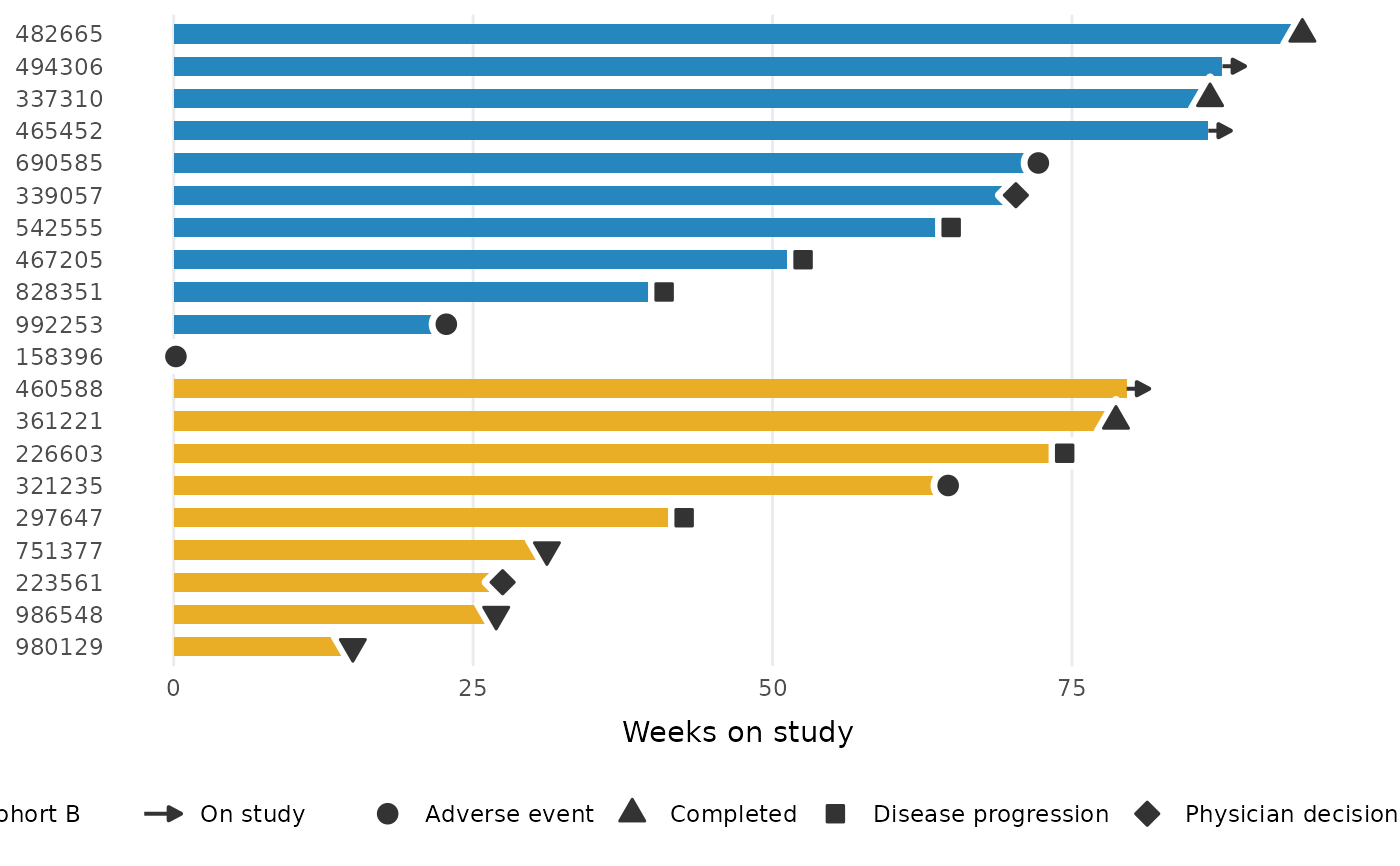

library(ggplot2)

patient_disposition |>
  order_swimlane(subject, weeks_on_study, cohort) |>
  ggplot() +
  geom_swimlane(subject, weeks_on_study, cohort) +
  geom_swimlane_status(subject, weeks_on_study, reason_off_study) +
  labs(x = "Weeks on study") +
  theme_swimlane()
