ducklake

ducklake is an R package that brings versioned data lake infrastructure to data-intensive workflows. Built on DuckDB and DuckLake, it provides ACID transactions, automatic versioning, time travel queries, and complete audit trails.

Why DuckLake?

Many industries rely on flat-file workflows (CSV, XPT, Excel, etc.) that create significant data management challenges:

• Disconnected flat files: Related datasets stored as separate files despite being inherently relational
• Lost audit trails: No automatic tracking of who changed what and when
• Version control gaps: Multiple dataset versions scattered across folders with unclear provenance
• Reproducibility issues: Inability to recreate analyses from specific time points
• Collaboration friction: Multiple analysts working with different versions of the same data
• Compliance challenges: Difficulty demonstrating data integrity and audit trails for regulated industries

DuckLake solves these problems by implementing a versioned data lake architecture that:

• Preserves relational structure between related datasets
• Automatically versions every data change with timestamps and metadata
• Enables time travel to recreate analyses exactly as they were run
• Provides complete audit trails with author attribution and commit messages
• Supports layered architecture (bronze/silver/gold) for data lineage from raw to analysis-ready
• Allows multiple team members to collaborate safely with shared data

Installation

install.packages("ducklake")

Development version

pak::pak("tgerke/ducklake-r")

ducklake requires the duckdb R package version 1.5.5 or newer. DuckDB 1.5.2 is the release that ships the stable DuckLake 1.0 specification, and duckdb 1.5.5 is where the R package settled how it stores downloaded extensions, which ducklake relies on.

DuckLake itself ships as a DuckDB extension. attach_ducklake() downloads it the first time it is needed and says where it put it, so there is no install step. In an interactive session, duckdb offers to create ~/.duckdb the first time it connects; say yes and the download happens once per machine rather than once per session. Scripts and CI jobs get the same by setting DUCKDB_R_HOME in ~/.Renviron or the job’s environment. install_ducklake() fetches the extension ahead of time, for container images and machines that are offline when the lake is attached, and ducklake_extension_available() reports whether it is already there.

ducklake manages its own DuckDB connection, so there is nothing to set up: just attach_ducklake() and go. If you prefer to supply your own connection (for example, one shared with other DBI-based tools), register it with set_ducklake_connection().

Quick start: a layered lake

The medallion pattern organizes a lake in layers: bronze holds data exactly as it arrived, silver holds the cleaned and standardized version, and gold holds the tables an analysis reads. This session builds one table per layer and follows the same steps as the Getting Started article: attach a lake, add tables, read them, change one, look at the history, detach.

Attach a lake

library(ducklake)
library(dplyr)

attach_ducklake("my_data_lake", lake_path = tempdir(), author = "Data Engineer")

One call opens a lake, and creates it first when nothing is at the path yet. By default the catalog is a DuckDB file stored next to the data. A lake that several people write to keeps its catalog in SQLite or PostgreSQL instead, and Choosing a Deployment walks through that choice.

Load the raw layer

Each layer gets a schema of its own. That keeps bronze.vehicles, silver.vehicles, and gold.vehicle_efficiency one lineage under three roofs, and lets access to raw data be restricted at the schema level.

with_transaction({
  create_schema("bronze")
  create_schema("silver")
  create_schema("gold")
}, author = "Data Engineer", commit_message = "Create medallion layers")
#> Created schema "bronze".
#> Created schema "silver".
#> Created schema "gold".
#> Committed snapshot 1 (Data Engineer): Create medallion layers

with_transaction(
  create_table(mtcars, "bronze.vehicles"),
  author = "Data Engineer",
  commit_message = "Initial load of raw vehicle data"
)
#> Committed snapshot 2 (Data Engineer): Initial load of raw vehicle data

Every write to a lake is a commit. with_transaction() makes the commit explicit: everything inside it lands as one snapshot, with a record of who made the change and why, and it all rolls back if any step fails. The confirmation names the snapshot, and the history section below uses that number to look back.

Derive the cleaned and analysis-ready layers

A dplyr pipeline on a lake table is a query. Ending it with create_table() runs the query inside DuckDB and writes the result straight into the lake, so the rows never pass through R. Each pipeline is kept in a variable here, because the recipe that builds a layer is also its lineage, which the last section draws.

silver <- get_ducklake_table("bronze.vehicles") |>
  select(mpg, cyl, hp, wt, gear) |>
  mutate(cyl = as.integer(cyl))

with_transaction(
  create_table(silver, "silver.vehicles"),
  author = "Data Engineer",
  commit_message = "Clean and standardize vehicle data"
)
#> Committed snapshot 3 (Data Engineer): Clean and standardize vehicle data

gold <- get_ducklake_table("silver.vehicles") |>
  mutate(efficient = mpg > 25)

with_transaction(
  create_table(gold, "gold.vehicle_efficiency"),
  author = "Data Analyst",
  commit_message = "Flag efficient vehicles"
)
#> Committed snapshot 4 (Data Analyst): Flag efficient vehicles

list_ducklake_tables()
#>   schema_name         table_name  type
#> 1      bronze           vehicles table
#> 2        gold vehicle_efficiency table
#> 3      silver           vehicles table

Read a table

get_ducklake_table() returns a lazy table. The dplyr verbs you pipe onto it become SQL that DuckDB runs against the lake, and collect() brings the result into R. Filter, select, and summarize before you collect, so DuckDB does the work and only the result reaches R.

get_ducklake_table("gold.vehicle_efficiency") |>
  count(cyl, efficient) |>
  arrange(cyl, efficient) |>
  collect()
#> # A tibble: 4 × 3
#>     cyl efficient     n
#>   <int> <lgl>     <dbl>
#> 1     4 FALSE         5
#> 2     4 TRUE          6
#> 3     6 FALSE         7
#> 4     8 FALSE        14

Rebuild a layer

When the cleaning logic changes, a layer is rewritten from a pipeline rather than re-extracted from the source system. replace_table() does that as one versioned change, and the version before the rewrite stays readable.

with_transaction(
  get_ducklake_table("silver.vehicles") |>
    mutate(gear = as.integer(gear)) |>
    replace_table("silver.vehicles"),
  author = "Data Engineer",
  commit_message = "Add gear type conversion to silver layer"
)
#> Committed snapshot 5 (Data Engineer): Add gear type conversion to silver layer

Modifying Tables covers the other ways to change a table: rows_insert(), rows_update(), and rows_delete() for specific rows, rows_upsert() and merge_into() for batches, and ducklake_exec() for changing rows in place. All of them are versioned in the same way.

See the history

list_table_snapshots() lists every commit in the lake, across all layers. The ids are the ones the confirmations printed, and snapshot 0 is the lake’s creation, recorded under the author attach_ducklake() was given.

list_table_snapshots() |>
  select(snapshot_id, author, commit_message)
#>   snapshot_id        author                           commit_message
#> 1           0 Data Engineer                              Create lake
#> 2           1 Data Engineer                  Create medallion layers
#> 3           2 Data Engineer         Initial load of raw vehicle data
#> 4           3 Data Engineer       Clean and standardize vehicle data
#> 5           4  Data Analyst                  Flag efficient vehicles
#> 6           5 Data Engineer Add gear type conversion to silver layer

Any earlier version of a table can be read as a lazy table. Here is the silver layer as it was at snapshot 3, before the rebuild:

get_ducklake_table_version("silver.vehicles", version = 3) |>
  select(mpg, cyl, gear) |>
  head(3) |>
  collect()
#> # A tibble: 3 × 3
#>     mpg   cyl  gear
#>   <dbl> <int> <dbl>
#> 1  21       6     4
#> 2  21       6     4
#> 3  22.8     4     4

Time Travel covers reading a table as of a timestamp, comparing versions, restoring one, and pinning a whole session to a snapshot.

Detach

detach_ducklake("my_data_lake")

Detaching deletes nothing. It releases the lock DuckDB holds on the catalog file, so another session or a backup can open the lake. Attaching the same path again picks up where you left off, history included.

Column-level lineage with dplyneage

ducklake records lineage at the table level: which tables each snapshot touched, and why. The companion package dplyneage traces lineage within a query, from each output column back to the source columns it came from. Lake tables are ordinary dbplyr lazy tables, so the pipelines that built the silver and gold layers above are also their lineage recipes. Pass them to extract_lineage() under the names they were materialized as, and it stitches the layers into one graph:

library(dplyneage)

lake_lineage <- extract_lineage(list(
  "silver.vehicles" = silver,
  "gold.vehicle_efficiency" = gold
))

lineage_flow(lake_lineage, height = "450px")

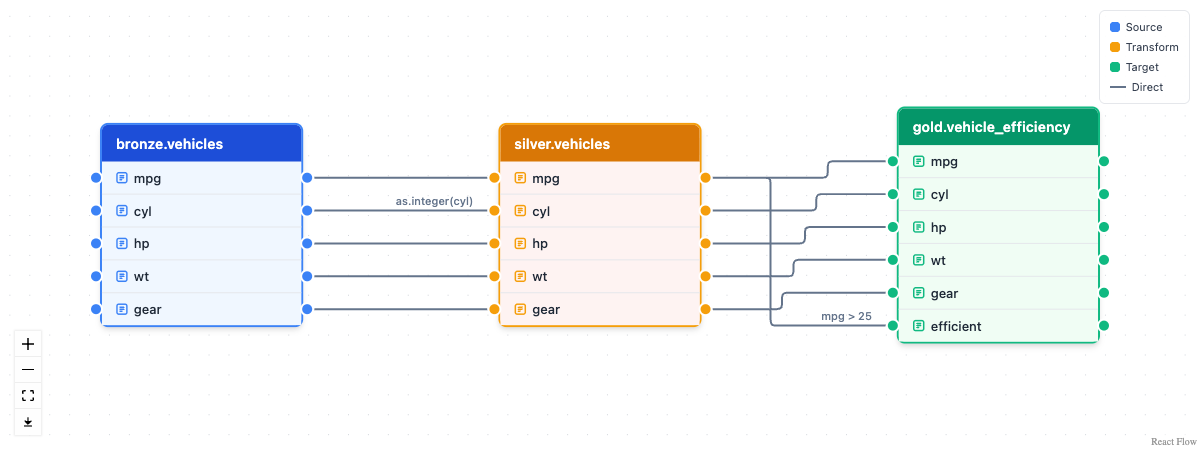

bronze.vehicles feeds silver.vehicles, which feeds gold.vehicle_efficiency. A column that passes through unchanged connects with a plain edge. A column a pipeline computes carries its expression as a label, with as.integer(cyl) on the way into silver and mpg > 25 on the way into gold. In an R session the diagram is interactive: drag tables, zoom, hover a column for its type and label, click one to isolate everything upstream and downstream of it. The same lineage answers impact questions as data:

lineage_upstream(lake_lineage, "gold.vehicle_efficiency.efficient")
#> [1] "bronze.vehicles.mpg" "silver.vehicles.mpg"

Lineage reads the structure of a pipeline, not its data, which is why this works after the lake was detached. dplyneage’s ducklake lineage article draws one diagram per layer and extracts lineage from time-travel queries. Its lineage that travels with the data article stores each layer’s lineage on the commit that wrote it, through commit_extra_info, so a snapshot’s rows and their derivation come back together.

Learn more

Check out the pkgdown site for detailed vignettes:

• Getting Started - Attach a lake, add a table, read it back, change it, and see its history
• Loading Data - Files, URLs, pipelines, schemas, Parquet in place, and migrating from DuckDB or Iceberg
• Choosing a Deployment - Which catalog, where the data goes, who can reach it, and what to set up on day one
• Clinical Trial Data Lake - SDTM to ADaM with admiral, analysis results in the lake, and column lineage
• Modifying Tables - Choosing how to change a table: joins vs. rows_*, upserts, merge_into(), and replace_table()
• Views, Comments, and Labels - Shared query logic and documentation that live in the lake
• Data Checks - Validation rules stored in the lake as views, run on demand or as a gate before a commit
• Data Inlining - Streaming-friendly small writes
• Transactions - ACID transaction support
• Time Travel - Query and restore historical data
• Storage and Backups - Back up and recover your lake
• Visualizing Your Lake - Plot snapshot history, change volume, and storage layout, and browse changed rows in an interactive viewer
• Quack Remote Access - Share a DuckLake over the network with the Quack protocol

Key features

• Versioned data lake: Every data change is tracked automatically as a snapshot, with timestamps and metadata, and a lake keeps as many snapshots as it needs without frequent compaction
• Multi-backend catalogs: Use DuckDB (default), PostgreSQL, SQLite, or MySQL as the catalog database. A PostgreSQL or SQLite catalog lets several clients use the lake at once (DuckLake 1.0 spec)
• Remote access over Quack: Serve a DuckLake to other R sessions over the network and let several people read and write it at once, using DuckDB’s Quack protocol
• ACID transactions: Atomic updates with concurrent access and transactional guarantees over multi-table operations; set_ducklake_retry() tunes how DuckLake retries transactions that race with another writer
• Time travel: Query data exactly as it existed at any point in time, so an analysis can be rerun against the data it first saw. Pin a whole session to a snapshot with attach_ducklake(snapshot_version = ...)
• Change feed and viewer: get_table_changes() returns every row inserted, updated, or deleted between two snapshots as a lazy table, and view_table_changes() opens that feed in an interactive viewer with the changed cells highlighted. plot_snapshots(), plot_table_changes(), and plot_table_files() chart a lake’s history, change volume, and file layout
• Performance-oriented: Uses Parquet columnar storage with statistics for filter pushdown, enabling fast queries on large datasets. Partitioning (set_table_partitioning()) and sorted tables (set_table_sorting()) prune files on large tables
• Migrate Parquet in place: add_data_files() registers existing Parquet files with the lake without copying or rewriting them
• Cloud storage: Keep data files on S3, GCS, R2, or Azure, with create_storage_secret() handling the credentials
• Tunable: set_ducklake_option() adjusts DuckLake’s persisted settings (compression, file sizes, commit-message policy) at lake, schema, or table scope
• Maintenance and backups: One call to checkpoint_ducklake() flushes inlined data, merges small files, rewrites heavily deleted ones, and, when the lake has a retention policy, expires old snapshots and deletes the files they released. Each step is also a function of its own, and backup_ducklake() makes a timestamped copy of the data files and of a file-based catalog
• Schema evolution in place: add_table_column(), drop_table_column(), rename_table_column(), set_column_type(), and rename_ducklake_table() change a table’s shape as metadata-only operations. No data is rewritten, and every earlier schema stays reachable through time travel
• Variable labels survive the lake: create_table() stores haven/labelled column labels as catalog comments and collect() restores them, so gtsummary and gt keep displaying them; set_table_comment(), set_column_comments(), and get_table_comments() manage documentation any client of the lake can read
• Views: create_view() stores a dplyr pipeline as a SQL view in the lake, so shared logic always reads current data. list_ducklake_tables() shows what’s there
• Data checks (experimental): create_check() stores a validation rule in the lake as a view that returns the rows breaking it, and run_checks() counts the failing rows for every rule. The rules are versioned with the data and run from any client of the lake. Inside with_transaction() they see pending writes, so a load that fails a check can be rolled back before it commits
• Schemas: create_schema() organizes a lake into medallion layers (bronze, silver, gold), studies, or any other grouping, and every function accepts "schema.table"
• Tidyverse interface: Familiar dplyr syntax for data manipulation
• In-database writes: create_table() and replace_table() run dplyr pipelines inside DuckDB and write the result straight into the lake, so derived layers never pass through R memory
• Encryption: Opt-in Parquet encryption with attach_ducklake(encrypted = TRUE). The Parquet keys are kept in the catalog, and the meta_encryption_key argument encrypts a DuckDB catalog file as well
• A write style for every job: rows_insert(), rows_update(), rows_delete(), and rows_upsert() for incremental changes; merge_into() for conditional merges and staging-table syncs; replace_table() pipelines for bulk rewrites. All of them are versioned
• Complete audit trails: Who changed what, when, and why, in a form suitable for regulated industries. options(ducklake.author = ...) names the author once for a whole session
• Plain DBI underneath: Lake tables are ordinary dbplyr lazy tables on a duckdb connection, so DBI, dbplyr, and the rest of the tidyverse work on them directly. get_ducklake_connection() hands you the connection
