dplyneage draws interactive column-level lineage diagrams for dplyr pipelines and SQL queries. Pipe a query into extract_lineage() and it traces every output column back to the source columns it came from (through joins, aggregations, CTEs, unions, and computed expressions), then renders the result as a draggable, zoomable React Flow diagram with lineage_flow().

dbplyr, dtplyr, and arrow pipelines are analyzed in pure R by walking their lazy query trees, so no Python is involved. Raw SQL goes through sqlglot’s dedicated lineage engine instead, which means many dialects (DuckDB, PostgreSQL, Snowflake, BigQuery, …) work too, and duckplyr frames take the same route: their lazy tree lives inside duckdb, so it is rendered to SQL and parsed.

Installation

Install the released version from CRAN:

install.packages("dplyneage")

Or the development version from GitHub:

pak::pak("tgerke/dplyneage")

This README follows the development version, which is ahead of the 0.3.1 release on CRAN. The dtplyr, duckplyr, and arrow engines, column labels, lineage_check(), lineage_unused(), lineage_emit(), and the theme, legend, and minimap options of lineage_flow() all need the GitHub install for now; the changelog has the full list.

dbplyr, dtplyr, and arrow pipelines need no Python at all, not even reticulate. Raw SQL input and duckplyr frames do, and so does the occasional dbplyr pipeline that embeds raw SQL with dbplyr::sql(). For those, install the reticulate package once; the Python dependency (sqlglot) is then provisioned automatically the first time it’s needed. See vignette("python-integration") if you manage your own Python environment.

Usage

Build a dplyr pipeline against a database as usual, then pipe it into extract_lineage() and lineage_flow():

library(dplyneage)
library(dplyr)
library(dbplyr)
library(duckdb)

con <- dbConnect(duckdb::duckdb(), ":memory:")

customers <- tibble(
  customer_id = 1:5,
  first_name = c("Alice", "Bob", "Charlie", "Diana", "Eve"),
  last_name = c("Smith", "Jones", "Brown", "Wilson", "Davis"),
  email = paste0(tolower(first_name), "@example.com")
)

orders <- tibble(
  order_id = 1:10,
  customer_id = rep(1:5, each = 2),
  amount = c(100, 150, 200, 75, 300, 125, 180, 90, 250, 160)
)

copy_to(con, customers, "customers", overwrite = TRUE)
copy_to(con, orders, "orders", overwrite = TRUE)

tbl(con, "customers") |>
  select(customer_id, first_name, last_name, email) |>
  left_join(tbl(con, "orders"), by = "customer_id") |>
  group_by(customer_id, first_name, last_name, email) |>
  summarise(
    total_orders = n_distinct(order_id),
    total_spent = sum(amount, na.rm = TRUE),
    .groups = "drop"
  ) |>
  mutate(avg_order = total_spent / total_orders) |>
  extract_lineage() |>
  lineage_flow(height = "600px")

Column-level lineage diagram with the customers and orders tables on the left and the summarised output table on the right, with edges tracing each output column, including the derived avg_order column, back to its source columns

Behind that one pipe, extract_lineage():

  • walks the pipeline’s lazy query tree in pure R, tracing every output column to its source columns (joins, aggregations, unions, and multi-source computed columns all resolve exactly)
  • falls back to sqlglot’s lineage engine when the pipeline injects raw SQL with dbplyr::sql(), or when you pass a SQL string directly (that path handles aliases, CTEs, and subqueries, and reads table schemas from your connection so unqualified columns attribute correctly)

The resulting diagram is fully interactive: drag tables to rearrange, zoom and pan, and hover columns to highlight their connections; when a column’s type or label was captured, the hover also shows a small card with both. Click a column and the diagram isolates its trace cone (everything upstream and downstream of that column) until you click again or press Escape. A computed column carries its defining expression as a label beside the row it feeds (avg_order here, which traces through the two aggregates it divides back to orders.amount and orders.order_id), and aggregation edges animate. Long expressions are trimmed; hover an edge for the full text. lineage_flow() also takes theme = "dark" (or "auto") and minimap = TRUE for an overview map. A legend keyed to the node colors and edge styles in the diagram shows by default (legend = FALSE hides it), and a PNG download button lives in the zoom controls. In Shiny, lineage_flowOutput() and renderLineageFlow() embed the diagram, and a clicked column arrives on the server as input$<outputId>_selected, a list with table and column entries to feed lineage_upstream() or lineage_downstream().

Local data frames

Lineage extraction needs the lazy query tree that dbplyr builds before anything executes. A pipeline on a plain tibble has no such tree (dplyr runs each verb immediately), so extract_lineage() can’t trace it. The fix is one line: dbplyr::tbl_lazy() wraps the frame in a lazy table with no database behind it, and the identical pipeline becomes traceable.

sales <- tbl_lazy(
  data.frame(
    customer_id = c(1, 1, 2),
    amount = c(100, 250, 40)
  ),
  name = "sales"
)

sales |>
  group_by(customer_id) |>
  summarise(total = sum(amount, na.rm = TRUE)) |>
  extract_lineage() |>
  lineage_flow(height = "350px")

Column-level lineage diagram tracing the summarised output table's total column back to the amount column of the sales source table

A tbl_lazy() pipeline can’t be collected, since there is no database to run it against; lineage never runs the query, so a diagram doesn’t need one. To keep the pipeline runnable too, dbplyr::memdb_frame() builds the data in throwaway in-memory SQLite instead, and copy_to(dbplyr::memdb(), df, name = "df") does the same for a frame you already have. If the pipeline already runs on dtplyr, duckplyr, or arrow, no wrapping is needed at all: extract_lineage() reads those backends’ lazy structures directly. Lineage depends only on the pipeline’s structure, never on the data, so copying a slice with head(df) yields the same diagram as copying every row. Column label attributes on the frame (the convention haven and labelled use for imported SAS, SPSS, and Stata data) ride along too: they show as hover cards in the diagram, propagate to downstream columns along identity edges, and become field descriptions in the OpenLineage export. Database column comments (duckdb, postgres) and a labels argument feed the same machinery. See the Local data frames section of the getting-started vignette for more.

Multi-model pipelines

Real pipelines materialize layers: bronze tables feed a silver summary, silver feeds gold. Pass extract_lineage() a named list, one element per layer, and it stitches them into a single DAG: any source table whose name matches another element’s name links to that model’s node.

silver <- tbl(con, "orders") |>
  group_by(customer_id) |>
  summarise(total_spent = sum(amount, na.rm = TRUE), .groups = "drop")
invisible(compute(silver, name = "silver", temporary = TRUE))

gold <- tbl(con, "silver") |>
  mutate(big_spender = total_spent > 400)

extract_lineage(list(silver = silver, gold = gold)) |>
  lineage_flow(height = "450px")

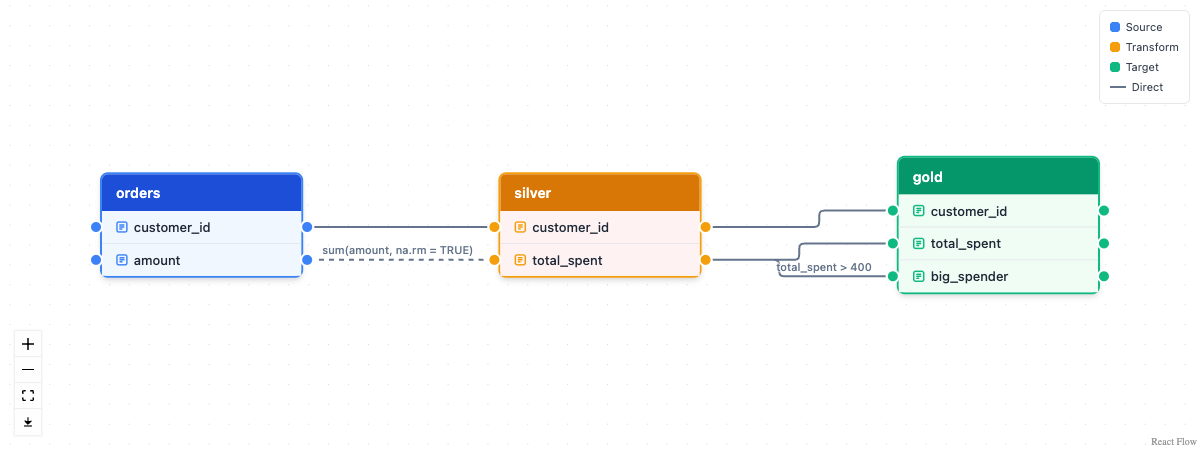

Three-layer lineage diagram: the orders source table in blue feeds the silver transform table in orange, which feeds the gold target table in green, with column-level edges through all three layers

Intermediate models render as orange transform nodes, terminal models as green targets, and impact questions now span the whole pipeline:

extract_lineage(list(silver = silver, gold = gold)) |>
  lineage_upstream("gold.big_spender")
#> [1] "orders.amount"      "silver.total_spent"

Building diagrams by hand

For documentation or design work, you can construct lineage diagrams directly with create_table_node() and create_column_edge():

nodes <- list(
  create_table_node(
    table_name = "customers",
    columns = c("customer_id", "name", "email"),
    x = 0, y = 50,
    table_type = "source"
  ),
  create_table_node(
    table_name = "orders",
    columns = c("order_id", "customer_id", "total_amount"),
    x = 0, y = 300,
    table_type = "source"
  ),
  create_table_node(
    table_name = "customer_summary",
    columns = c("customer_id", "customer_name", "total_spent"),
    x = 500, y = 150,
    table_type = "target"
  )
)

edges <- list(
  create_column_edge("customers", "customer_id", "customer_summary", "customer_id"),
  create_column_edge("customers", "name", "customer_summary", "customer_name"),
  create_column_edge("orders", "total_amount", "customer_summary", "total_spent",
                     label = "SUM()", animated = TRUE)
)

lineage_flow(nodes, edges, height = "600px")

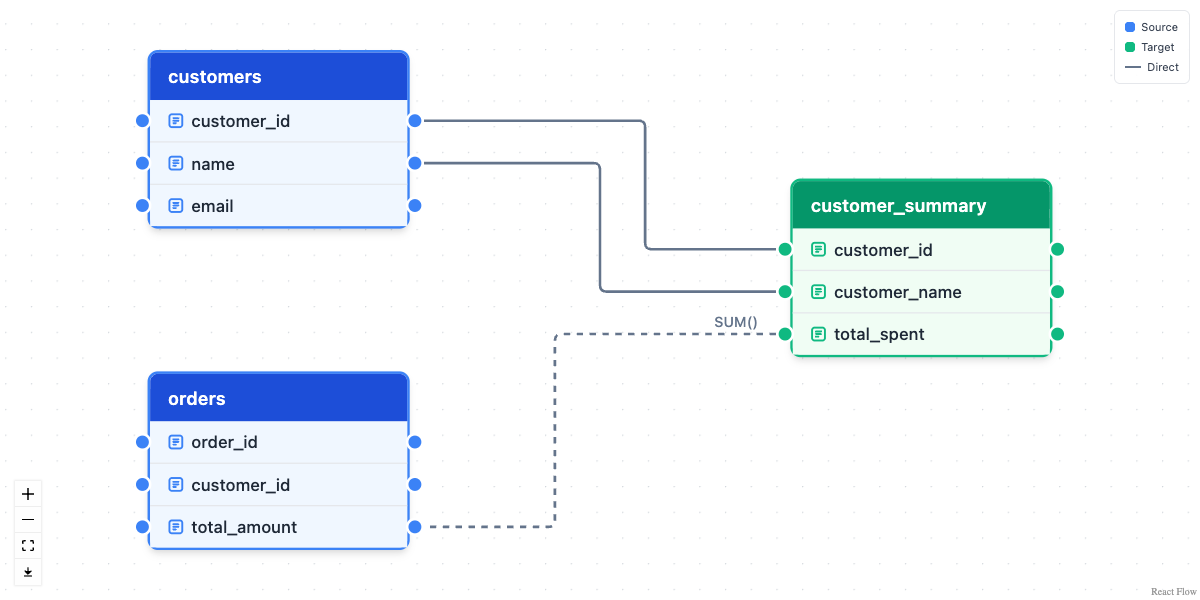

Hand-built lineage diagram showing the customers and orders source tables in blue connected to a customer_summary target table in green, with a SUM() label on the total_spent edge

Table types follow the color conventions used by dbt and SQLMesh:

Type Color Use case
source Blue Raw/source tables
transform Orange Intermediate transformations
target Green Final output/materialized tables

Works with ducklake

Because extract_lineage() accepts any dbplyr lazy table, it composes directly with packages that produce them, for example ducklake tables:

library(ducklake)

get_ducklake_table("orders") |>
  dplyr::left_join(get_ducklake_table("customers"), by = "customer_id") |>
  dplyr::group_by(customer_id) |>
  dplyr::summarise(total = sum(amount, na.rm = TRUE)) |>
  extract_lineage() |>
  lineage_flow()

The ducklake lineage vignette works through a full example: building a small lake, diagramming each layer of a bronze/silver/gold pipeline, and extracting lineage from time-travel queries. The lineage that travels with the data article stores each layer’s lineage on the ducklake commit that wrote it, so any snapshot’s rows and derivation come back from the catalog together.

Lineage as data

Diagrams are for people; the same lineage is also useful as plain data. lineage_edges() flattens it to one classified row per column edge, and lineage_upstream() / lineage_downstream() answer impact questions directly: for one "table.column", or for a whole table at once when you pass just its name. lineage_unused() runs the reverse check, listing every source or intermediate column with no path to any target: the columns you could drop without changing what ships.

lineage <- tbl(con, "orders") |>
  left_join(tbl(con, "customers"), by = "customer_id") |>
  group_by(customer_id, first_name) |>
  summarise(total_spent = sum(amount, na.rm = TRUE), .groups = "drop") |>
  mutate(big_spender = total_spent > 400) |>
  extract_lineage()

lineage_edges(lineage)
#>   source_table source_column target_table target_column transformation
#> 1       orders   customer_id       output   customer_id       identity
#> 2    customers    first_name       output    first_name       identity
#> 3       orders        amount       output   total_spent    aggregation
#> 4       orders        amount       output   big_spender transformation
#>                  expression
#> 1               customer_id
#> 2                first_name
#> 3 sum(amount, na.rm = TRUE)
#> 4         total_spent > 400

lineage_upstream(lineage, "output.total_spent")
#> [1] "orders.amount"

By default lineage follows the select list, so the columns a pipeline filters, joins, groups, or sorts on draw no edges for doing so. extract_lineage(include_indirect = TRUE) adds them as dashed edges, classified as filter, join, group_by, or sort. Impact analysis usually wants them: dropping a column that only filters the result still breaks the pipeline.

lineage_diff() compares two extractions and classifies every change by blast radius: breaking when the change reaches columns that anything downstream consumes, non-breaking for pure additions. lineage_check() turns that into a one-call CI gate: it errors on breaking changes and annotates the pull request on GitHub Actions (worked example). For interchange, lineage_json() gives you a small, stable document you can query with jq, feed to a data catalog, or commit next to your pipeline code:

lineage_json(lineage)
#> {
#>   "format_version": 1,
#>   "metadata": {
#>     "dialect": "duckdb",
#>     "engine": "r",
#>     "models": {
#>       "output": {
#>         "sql": "SELECT *, total_spent > 400.0 AS big_spender\nFROM (\n  SELECT customer_id, first_name, SUM(amount) AS total_spent\n  FROM (\n    SELECT orders.*, first_name, last_name, email\n    FROM orders\n    LEFT JOIN customers\n      ON (orders.customer_id = customers.customer_id)\n  ) AS q01\n  GROUP BY customer_id, first_name\n) AS q01",
#>         "engine": "r",
#>         "dialect": "duckdb",
#>         "namespace": "duckdb"
#>       }
#>     },
#>     "node_count": 3,
#>     "edge_count": 4
#>   },
#>   "nodes": [
#>     {
#>       "id": "orders",
#>       "type": "source",
#>       "columns": ["customer_id", "amount"]
#>     },
#>     {
#>       "id": "customers",
#>       "type": "source",
#>       "columns": ["first_name"]
#>     },
#>     {
#>       "id": "output",
#>       "type": "target",
#>       "columns": ["customer_id", "first_name", "total_spent", "big_spender"]
#>     }
#>   ],
#>   "edges": [
#>     {
#>       "source": "orders",
#>       "source_column": "customer_id",
#>       "target": "output",
#>       "target_column": "customer_id",
#>       "transformation": "identity",
#>       "expression": "customer_id"
#>     },
#>     {
#>       "source": "customers",
#>       "source_column": "first_name",
#>       "target": "output",
#>       "target_column": "first_name",
#>       "transformation": "identity",
#>       "expression": "first_name"
#>     },
#>     {
#>       "source": "orders",
#>       "source_column": "amount",
#>       "target": "output",
#>       "target_column": "total_spent",
#>       "transformation": "aggregation",
#>       "expression": "sum(amount, na.rm = TRUE)"
#>     },
#>     {
#>       "source": "orders",
#>       "source_column": "amount",
#>       "target": "output",
#>       "target_column": "big_spender",
#>       "transformation": "transformation",
#>       "expression": "total_spent > 400"
#>     }
#>   ]
#> }

Written to a file, that document is scriptable from outside R entirely; here’s jq answering “which source columns feed total_spent?”:

lineage_json(lineage, "lineage.json")
jq -r '.edges[] | select(.target_column == "total_spent")
       | "\(.source).\(.source_column)"' lineage.json
#> orders.amount

lineage_from_json() reads the document back into a lineage object, so a committed file can be the old side of lineage_diff() and lineage_check() with no second extraction.

lineage_graphml() writes GraphML, which opens directly in graph tools like Gephi, yEd, and igraph. The same question works as a graph query, and scales to transitive ancestry when pipelines chain:

path <- tempfile(fileext = ".graphml")
lineage_graphml(lineage, path)

g <- igraph::read_graph(path, format = "graphml")
igraph::subcomponent(g, "output.total_spent", mode = "in")
#> + 2/7 vertices, named, from 23aaa89:
#> [1] output.total_spent orders.amount

lineage_mermaid() writes a Mermaid flowchart instead. GitHub, Quarto, and most documentation tools render Mermaid from a plain code fence, so the diagram can sit in a README or a design doc with no R behind it.

For data catalogs, lineage_openlineage() emits OpenLineage events, the interchange format Marquez, DataHub, and OpenMetadata ingest. Dataset namespaces come from the table’s actual connection, schema facets carry column types and descriptions (from label attributes, database comments, or a labels argument), and events = "job" produces the spec’s run-less design-time events, one per model. lineage_emit() POSTs any of it to a running backend:

lineage_openlineage(lineage, events = "job")          # run-less JobEvents, NDJSON
lineage_emit(lineage, url = "http://localhost:5000")  # straight into Marquez

The OpenLineage article covers the event contents and a verified round-trip into a Marquez quickstart.

How it compares

No other maintained R package extracts column-level lineage: dtrackr documents pipeline steps, lineager tracks row provenance, and rdtLite records execution history. None answer “which source columns feed this output column?” Outside R, that question is well served for SQL text but not for dataframe code (only Spark has an equivalent), which is the corner dplyneage sits in: the same lineage machinery covers dplyr pipelines on four lazy backends and your warehouse queries alike.

dplyneage sqlglot.lineage sqllineage dbt SQLMesh
Column-level lineage dual engine (R + sqlglot) SELECT projections broader DML Enterprise (Fusion: free in local dev) free UI
dplyr pipelines (dbplyr, dtplyr, duckplyr, arrow) native — — — —
Indirect (filter/join/group/sort) columns opt-in — — excluded —
Breaking-change classification lineage_check() CI gate — — Advanced CI (paid) semantic diff
Column labels / descriptions label attributes + DB comments, propagated — — Catalog (Enterprise) —
OpenLineage export built in — — external integration —
Free and local yes yes yes partly yes

The scope has edges on purpose: orchestration, materialization, dashboard-level lineage, and catalog UIs belong to the platforms. dplyneage aims to be the extraction and artifact layer: the lineage itself, as a diagram you can read and a document you can commit, diff, and hand to the tools that do the rest. The longer form of this comparison, with per-tool notes and the roadmap rationale, is in POSITIONING.md. (Comparison as of August 2026.)
